Web3SDK¶
FISCO BCOS提供了Java语言SDK用以访问节点,查询节点状态,改变节点设置和发送交易等功能。
该版本(2.0)的技术文档只适用Web3SDK 2.0及以上版本(与FISCO BCOS 2.0及以上版本适配),1.3.x版本的技术文档请查看Web3SDK 1.3.x版本技术文档。Web3SDK Github提供访问FISCO BCOS节点的Java API。
- 提供调用FISCO BCOS JSON-RPC的Java API
- 链上信使协议,为联盟链提供安全高效的消息信道。
- 支持使用国密算法发交易
- 支持预编译(Precompiled)合约管理区块链
环境要求¶
重要
- java版本
要求 JDK8或以上,推荐使用OpenJDK11 > CentOS的yum仓库的OpenJDK由于缺少JCE(Java Cryptography Extension),导致Web3SDK无法正常连接区块链节点,在使用CentOS操作系统时,推荐从OpenJDK网站自行下载。OpenJDK11下载地址 安装指南
- FISCO BCOS区块链环境搭建
- 网络连通性
检查Web3SDK连接的FISCO BCOS节点channel_listen_port是否能telnet通,若telnet不通,需要检查网络连通性和安全策略。
Java应用引入SDK¶
通过gradle或maven引入SDK到java应用
gradle:
compile ('org.fisco-bcos:web3sdk:2.0.2')
maven:
<dependency>
<groupId>org.fisco-bcos</groupId>
<artifactId>web3sdk</artifactId>
<version>2.0.2</version>
</dependency>
由于引入了以太坊的solidity编译器相关jar包,需要在Java应用的gradle配置文件build.gradle中添加以太坊的远程仓库
repositories {
mavenCentral()
maven { url "https://dl.bintray.com/ethereum/maven/" }
}
配置SDK¶
FISCO BCOS节点证书配置¶
FISCO BCOS作为联盟链,其SDK连接区块链节点需要通过证书(ca.crt、node.crt)和私钥(node.key)进行双向认证。
配置文件设置¶
Java应用的配置文件需要做相关配置。值得关注的是,FISCO BCOS 2.0版本支持多群组功能,SDK需要配置群组的节点信息。将以Spring项目和Spring Boot项目为例,提供配置指引。
Spring项目配置¶

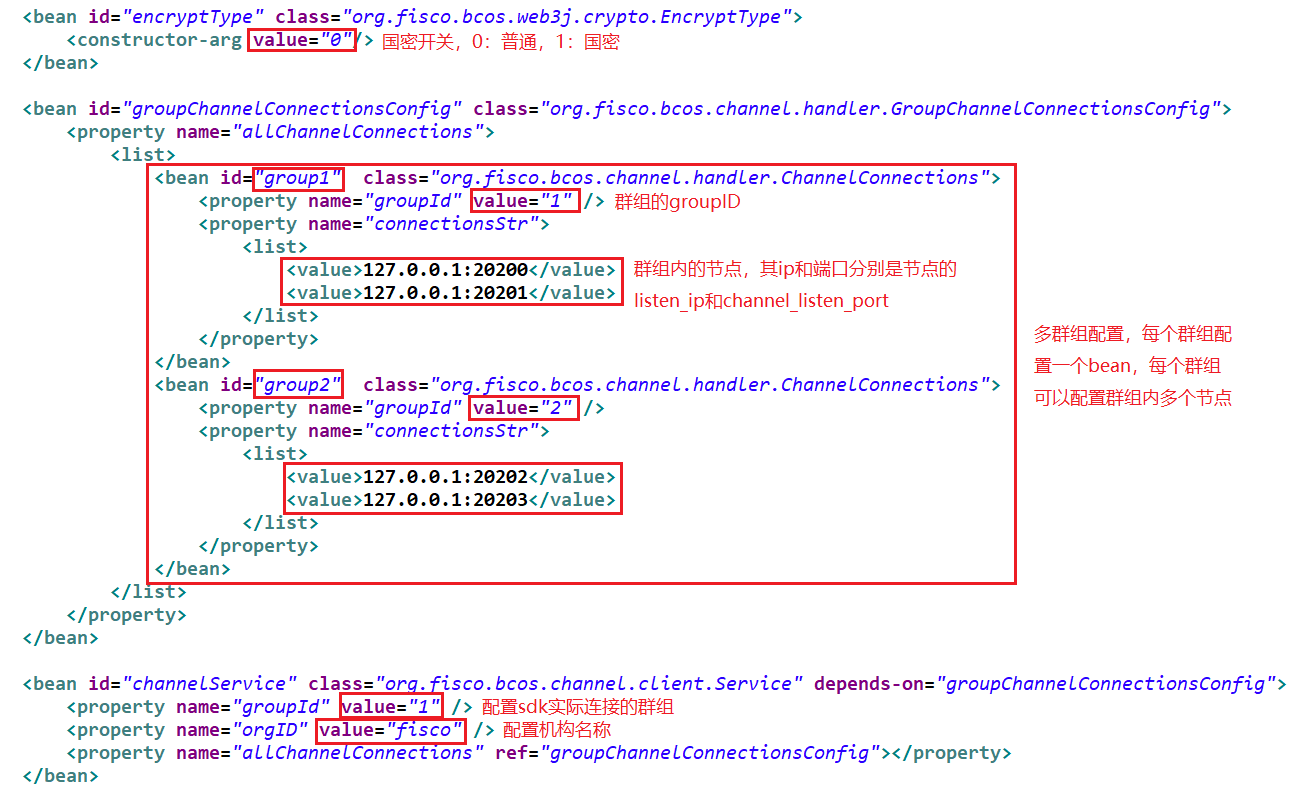

提供Spring项目中关于applicationContext.xml的配置如下图所示,其中红框标记的内容根据区块链节点配置做相应修改。
applicationContext.xml配置项详细说明:
- encryptType: 国密算法开关(默认为0)
- 0: 不使用国密算法发交易
- 1: 使用国密算法发交易(开启国密功能,需要连接的区块链节点是国密节点,搭建国密版FISCO BCOS区块链参考这里)
- groupChannelConnectionsConfig:
- 配置待连接的群组,可以配置一个或多个群组,每个群组需要配置群组ID
- 每个群组可以配置一个或多个节点,设置群组节点的配置文件config.ini中
[rpc]
部分的listen_ip
和channel_listen_port
。
- channelService: 通过指定群组ID配置SDK实际连接的群组,指定的群组ID是groupChannelConnectionsConfig配置中的群组ID。SDK会与群组中配置的节点均建立连接,然后随机选择一个节点发送请求。
Spring Boot项目配置¶

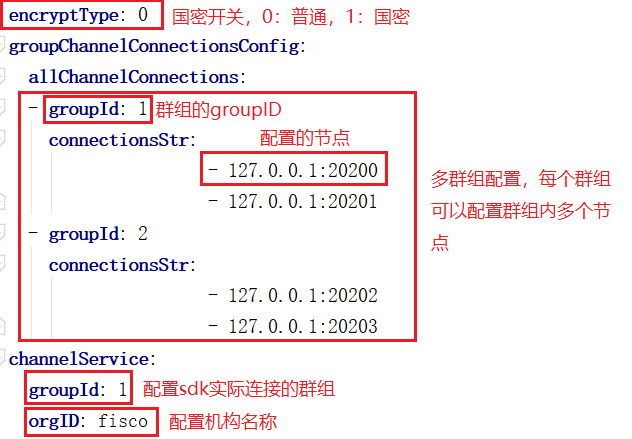

提供Spring Boot项目中关于application.yml的配置如下图所示,其中红框标记的内容根据区块链节点配置做相应修改。
application.yml配置项与applicationContext.xml配置项相对应,详细介绍参考applicationContext.xml配置说明。
使用SDK¶
Spring项目开发指引¶
调用SDK的API(参考Web3SDK API列表)设置或查询相关的区块链数据。¶
- 调用SDK Web3j的API:需要加载配置文件,SDK与区块链节点建立连接。获取web3j对象,根据Web3j对象调用相关API。示例代码如下:
//读取配置文件,SDK与区块链节点建立连接
ApplicationContext context = new ClassPathXmlApplicationContext("classpath:applicationContext.xml");
Service service = context.getBean(Service.class);
service.run();
ChannelEthereumService channelEthereumService = new ChannelEthereumService();
channelEthereumService.setChannelService(service);
//获取Web3j对象
Web3j web3j = Web3j.build(channelEthereumService, service.getGroupId());
//通过Web3j对象调用API接口getBlockNumber
BigInteger blockNumber = web3j.getBlockNumber().send().getBlockNumber();
System.out.println(blockNumber);
- 调用SDK Precompiled的API:需要加载配置文件,SDK与区块链节点建立连接。获取SDK Precompiled Service对象,调用相关的API。示例代码如下:
//读取配置文件,SDK与区块链节点建立连接,获取Web3j对象
ApplicationContext context = new ClassPathXmlApplicationContext("classpath:applicationContext.xml");
Service service = context.getBean(Service.class);
service.run();
ChannelEthereumService channelEthereumService = new ChannelEthereumService();
channelEthereumService.setChannelService(service);
Web3j web3j = Web3j.build(channelEthereumService, service.getGroupId());
//填入用户私钥,用于交易签名
Credentials credentials = Credentials.create("b83261efa42895c38c6c2364ca878f43e77f3cddbc922bf57d0d48070f79feb6");
//获取SystemConfigService对象
SystemConfigSerivce systemConfigSerivce = new SystemConfigSerivce(web3j, credentials);
//通过SystemConfigService对象调用API接口setValueByKey
String result = systemConfigSerivce.setValueByKey("tx_count_limit", "2000");
//通过Web3j对象调用API接口getSystemConfigByKey
String value = web3j.getSystemConfigByKey("tx_count_limit").send().getSystemConfigByKey();
System.out.println(value);
通过SDK部署并调用合约¶
准备Java合约文件:Solidity合约文件转换为Java合约文件¶
使用SDK把Solidity合约文件转成相应Java合约文件。合约转换工作在SDK源码目录下进行,因此需要获取SDK源码,然后进行合约转换。
# 获取sdk源码
git clone https://github.com/FISCO-BCOS/web3sdk
cd web3sdk
git checkout release-2.0.1
合约转换步骤:
把编写的Solidity合约文件拷贝到src/test/resources/contract下,确保合约名和文件名保持一致。
在SDK根目录下执行转换合约命令:
bash sol2java
生成的Java合约文件在src/test/java/org/fisco/bcos/temp目录,生成的abi和bin文件在src/test/resources/solidity目录。
温馨提示:SDK默认支持的Solidity版本是0.4.25,如果编译0.5以上版本合约,需要做如下配置
修改build.gradle配置文件,注释0.4.25版编译器jar包,使用0.5.2版编译器jar包,修改后的配置如下:
// compile files('lib/solcJ-all-0.4.25-gm.jar') compile 'org.ethereum:solcJ-all:0.5.2' // compile 'org.ethereum:solcJ-all:0.4.25'
删除src/test/resources/contract目录下版本为0.4.x的Solidity合约文件,将版本为0.5.x的Solidity合约文件拷贝到src/test/resources/contract目录下。
在SDK根目录下执行转换合约命令:
bash sol2java
生成的Java合约文件在src/test/java/org/fisco/bcos/temp目录,生成的abi和bin文件在src/test/resources/solidity目录。
部署并调用合约¶
SDK的核心功能是部署/加载合约,然后调用合约相关接口,实现相关业务功能。部署合约调用Java合约类的deploy方法,获取合约对象。通过合约对象可以调用getContractAddress方法获取部署合约的地址以及调用该合约的其他方法实现业务功能。如果合约已部署,则通过部署的合约地址可以调用load方法加载合约对象,然后调用该合约的相关方法。
//读取配置文件,sdk与区块链节点建立连接,获取web3j对象
ApplicationContext context = new ClassPathXmlApplicationContext("classpath:applicationContext.xml");
Service service = context.getBean(Service.class);
service.run();
ChannelEthereumService channelEthereumService = new ChannelEthereumService();
channelEthereumService.setChannelService(service);
channelEthereumService.setTimeout(10000);
Web3j web3j = Web3j.build(channelEthereumService, service.getGroupId());
//准备部署和调用合约的参数
BigInteger gasPrice = new BigInteger("300000000");
BigInteger gasLimit = new BigInteger("300000000");
Credentials credentials = Credentials.create("b83261efa42895c38c6c2364ca878f43e77f3cddbc922bf57d0d48070f79feb6");
//部署合约
YourSmartContract contract = YourSmartContract.deploy(web3j, credentials, new StaticGasProvider(gasPrice, gasLimit)).send();
//根据合约地址加载合约
//YourSmartContract contract = YourSmartContract.load(address, web3j, credentials, new StaticGasProvider(gasPrice, gasLimit));
//调用合约方法发送交易
TransactionReceipt transactionReceipt = contract.someMethod(<param1>, ...).send();
//查询合约方法查询该合约的数据状态
Type result = contract.someMethod(<param1>, ...).send();
Spring Boot项目开发指引¶
提供spring-boot-starter示例项目供参考。Spring Boot项目开发与Spring项目开发类似,其主要区别在于配置文件方式的差异。该示例项目提供丰富的测试案例,具体描述参考示例项目的README文档。
SDK国密功能使用¶
- 前置条件:FISCO BCOS区块链采用国密算法,搭建国密版的FISCO BCOS区块链请参考国密使用手册。
- 启用国密功能:application.xml/application.yml配置文件中将encryptType属性设置为1。
国密版SDK调用API的方式与普通版SDK调用API的方式相同,其差异在于国密版SDK需要生成国密版的Java合约文件。SDK源码的lib目录下已有国密版的编译器jar包,用于将Solidity合约文件转为国密版的Java合约文件。因此,使用国密版SDK只需要修改SDK源码根目录下的build.gradle文件,注释掉普通版编译器jar包,引入国密编译器jar包。
compile files('lib/solcJ-all-0.4.25-gm.jar')
// compile 'org.ethereum:solcJ-all:0.4.25'
// compile 'org.ethereum:solcJ-all:0.5.2'
Solidity合约文件转换为国密版Java合约文件的步骤、部署和调用国密版合约的方法均与普通版SDK相同。
Web3SDK API¶
Web3SDK API主要分为Web3j API和Precompiled Service API。其中Web3j API可以查询区块链相关的状态,发送和查询交易信息;Precompiled Service API可以管理区块链相关配置以及实现特定功能。
Web3j API¶
Web3j API是由web3j对象调用的FISCO BCOS的RPC API,其API名称与RPC API相同,参考RPC API文档。调用Web3j API示例参考SDK配置与使用。
Precompiled Service API¶
预编译合约是FISCO BCOS底层通过C++实现的一种高效智能合约。SDK已提供预编译合约对应的Java接口,控制台通过调用这些Java接口实现了相关的操作命令,体验控制台,参考控制台手册。SDK提供Precompiled对应的Service类,分别是分布式控制权限相关的PermissionService,CNS相关的CnsService,系统属性配置相关的SystemConfigService和节点类型配置相关ConsensusService。
设置和移除接口返回json字符串,包含code和msg字段,当无权限操作时,其code定义-1,msg定义为“non-authorized”。当成功操作时,其code为1(影响1条记录),msg为“success”。其他返回码如下:
错误码 | 消息内容 |
---|---|
0 | success |
50000 | permission denied |
51000 | table name and address already exist |
51001 | table name and address does not exist |
51100 | invalid node ID |
51101 | the last sealer cannot be removed |
51102 | the node is not reachable |
51103 | the node is not in group peers |
51104 | the node is already in sealer list |
51105 | the node is already in observer list |
51200 | contract name and version already exist |
51201 | version string length exceeds the maximum limit |
51300 | invalid configuration entry |
PermissionService¶
SDK提供对分布式控制权限的支持,PermissionService可以配置权限信息,其API如下:
- public String grantUserTableManager(String tableName, String address): 根据用户表名和外部账号地址设置权限信息。
- public String revokeUserTableManager(String tableName, String address): 根据用户表名和外部账号地址去除权限信息。
- public List<PermissionInfo> listUserTableManager(String tableName): 根据用户表名查询设置的权限记录列表(每条记录包含外部账号地址和生效块高)。
- public String grantDeployAndCreateManager(String address): 增加外部账号地址的部署合约和创建用户表权限。
- public String revokeDeployAndCreateManager(String address): 移除外部账号地址的部署合约和创建用户表权限。
- public List<PermissionInfo> listDeployAndCreateManager(): 查询拥有部署合约和创建用户表权限的权限记录列表。
- public String grantPermissionManager(String address): 增加外部账号地址的管理权限的权限。
- public String revokePermissionManager(String address): 移除外部账号地址的管理权限的权限。
- public List<PermissionInfo> listPermissionManager(): 查询拥有管理权限的权限记录列表。
- public String grantNodeManager(String address): 增加外部账号地址的节点管理权限。
- public String revokeNodeManager(String address): 移除外部账号地址的节点管理权限。
- public List<PermissionInfo> listNodeManager(): 查询拥有节点管理的权限记录列表。
- public String grantCNSManager(String address): 增加外部账号地址的使用CNS权限。
- public String revokeCNSManager(String address): 移除外部账号地址的使用CNS权限。
- public List<PermissionInfo> listCNSManager(): 查询拥有使用CNS的权限记录列表。
- public String addSysConfig(String address): 增加外部账号地址的系统参数管理权限。
- public String removeSysConfig(String address): 移除外部账号地址的系统参数管理权限。
- public List<PermissionInfo> querySysConfig(): 查询拥有系统参数管理的权限记录列表。
CnsService¶
SDK提供对CNS的支持。CnsService可以配置CNS信息,其API如下:
- String registerCns(String name, String version, String address, String abi): 根据合约名、合约版本号、合约地址和合约abi注册CNS信息。
- String getAddressByContractNameAndVersion(String contractNameAndVersion): 根据合约名和合约版本号(合约名和合约版本号用英文冒号连接)查询合约地址。
- List<CnsInfo> queryCnsByName(String name): 根据合约名查询CNS信息。
- List<CnsInfo> queryCnsByNameAndVersion(String name, String version): 根据合约名和合约版本号查询CNS信息。
SystemConfigSerivce¶
SDK提供对系统配置的支持。SystemConfigSerivce可以配置系统属性值(目前支持tx_count_limit和tx_gas_limit属性的设置),其API如下:
- String setValueByKey(String key, String value): 根据键设置对应的值(查询键对应的值,参考Web3j API中的getSystemConfigByKey接口)。
